Metamaterials ESA

MESA

Name: MESA
Brand: Echodyne

Breakthrough technology shatters ESA price-performance barriers.

Better By Design

MESA Resets Expectations

Electronically scanned array (ESA) technology has resisted miniaturization. Decades of effort and billions of dollars have not reduced radar cost, size, weight, or power. The fundamental equation remains high performance for high cost. Until now.

Echodyne’s MESA invention has proven better performance at much lower cost, size, weight, and power. Chapter 32 in the Antenna Engineering Handbook, 5th Edition (John L. Volakis, ©2019 McGraw-Hill Education) has more details on this rare innovation in ESA radar.

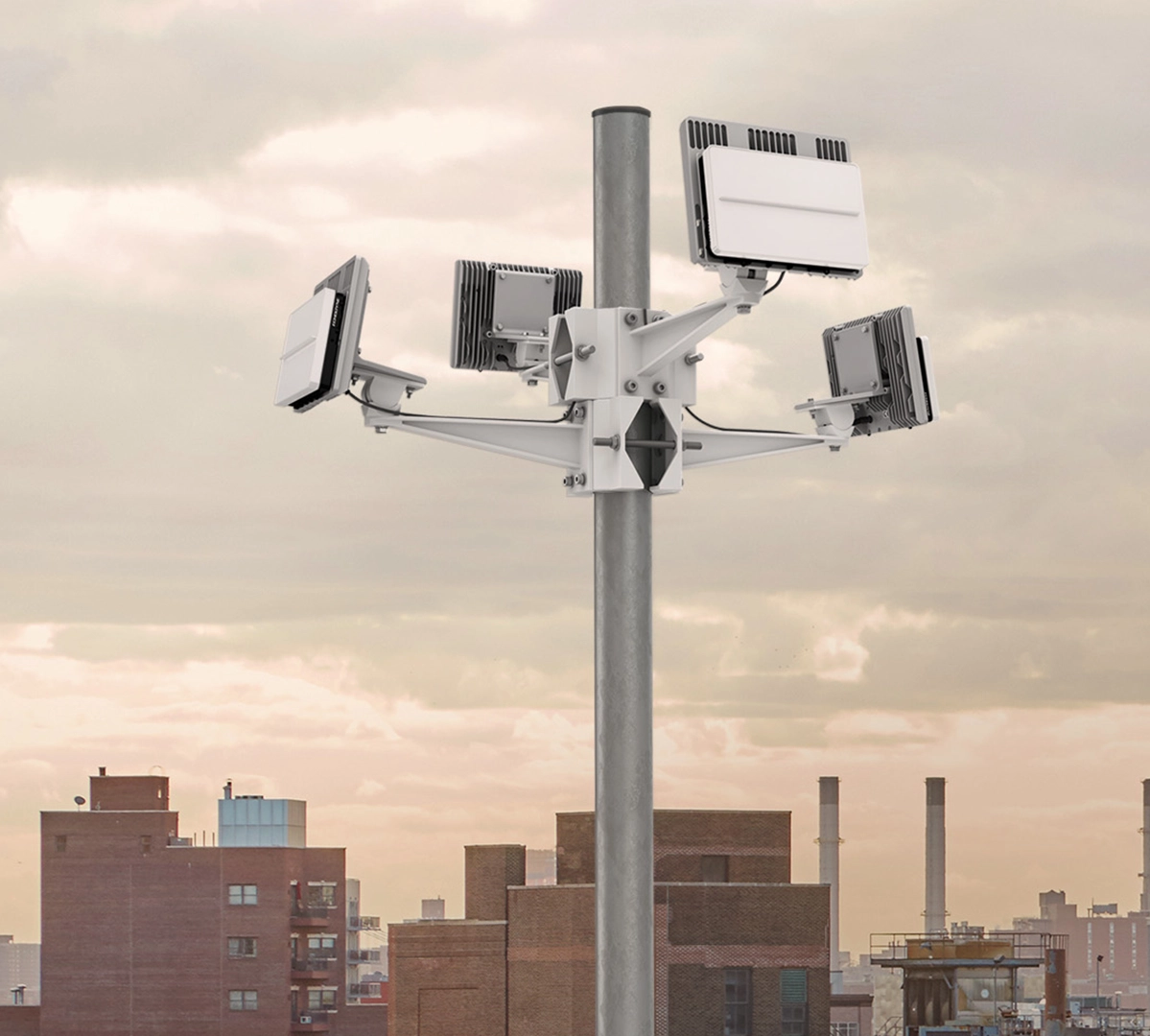

Learn more about MESA radars

Abstract black 3D topographic map with white contour lines and scattered dots.

Core MESA Advantages

Breakthrough Invention

When Echodyne was formed in late 2014, a nearly $1Bn DARPA project focused on reducing cost, size, weight, and power of ESA radar was finishing its work. Significant performance improvements were realized, though C-SWaP reduction eluded the team. The project leader reached out to Echodyne and said, ‘Tell me what you’re trying and I’ll tell you why it won’t work’.

Given the person and background, a meeting was quickly organized to review Echodyne’s novel approach to ESA design. Twenty minutes into the conversation, the project lead realized the miniaturization of ESA was right here – a radically simple design utilizing metamaterial science.

From idea through research, development, and growth to scaling manufacturing for multiple global markets, MESA continues to reset expectations for radar performance.

Simplified Design

MESA radar fundamentally reshapes the traditional price-performance trade space by combining a much simpler, solid-state architecture with dramatically superior sensing capability. By leveraging ultra-dense Tx/Rx unit counts (e.g., hundreds of elements versus tens in conventional ESA) and tighter element spacing down to λ/10, MESA systems generate significantly smaller, more precise beams (on the order of 2° × 6° versus 20° × 30°), enabling sharper target discrimination, improved clutter rejection, and enhanced detection of low, slow, small (LSS) drones in complex, low-altitude environments.

This higher spatial resolution, combined with inherently low sidelobes and efficient beamforming, allows for better performance in congested airspace and contested RF conditions, including reduced probability of intercept. At the same time, the solid-state, software-defined design eliminates much of the maintenance burden and sustainment cost associated with traditional ESA systems, while enabling continuous performance upgrades through software. The result is a radar architecture that is not only more capable, but also more reliable, scalable, and cost-efficient – shattering the conventional price-performance barrier and delivering high-end radar capability in a far more accessible and deployable form.

Solid-State Architecture

A solid-state architecture is foundational to enabling true software-defined radar, delivering significant advantages in reliability, maintainability, and long-term cost efficiency. Unlike conventional ESA systems that often rely on components requiring regular calibration, servicing, or replacement, solid-state radars eliminate many sources of both scheduled and unscheduled maintenance, dramatically increasing system uptime and operational availability.

This reduction in maintenance burden directly translates into lower sustainment costs and fewer logistical constraints, improving overall program financial efficiency. Additionally, software-defined capabilities allow performance upgrades, feature enhancements, and threat adaptations to be delivered through regular software updates rather than hardware modifications, extending system lifespan and relevance. The combination of high reliability and continuous upgradability makes solid-state, software-defined radar a more resilient and cost-effective solution for modern defense and security applications.

Ultra-Dense Array

MESA antennas enable a step-change in radar performance by dramatically increasing Tx/Rx unit density—from traditional λ/2 spacing down to λ/10—resulting in finer spatial sampling of the electromagnetic aperture. This higher density directly translates into improved beamforming precision, lower sidelobes, and enhanced sensitivity to small, low-RCS targets such as LSS drones.

In low-altitude environments, where targets operate near the horizon and within heavy ground clutter, radar performance challenges grow non-linearly compared to ground-only or high-altitude surveillance. The ability to form narrower, more agile beams and better suppress interference becomes critical for maintaining detection and track quality. By leveraging dense MESA architecture, radars can more effectively isolate weak drone returns from clutter, sustain high-fidelity tracking, and improve classification confidence in these complex, dynamic airspace conditions.

Angle/Space Resolution

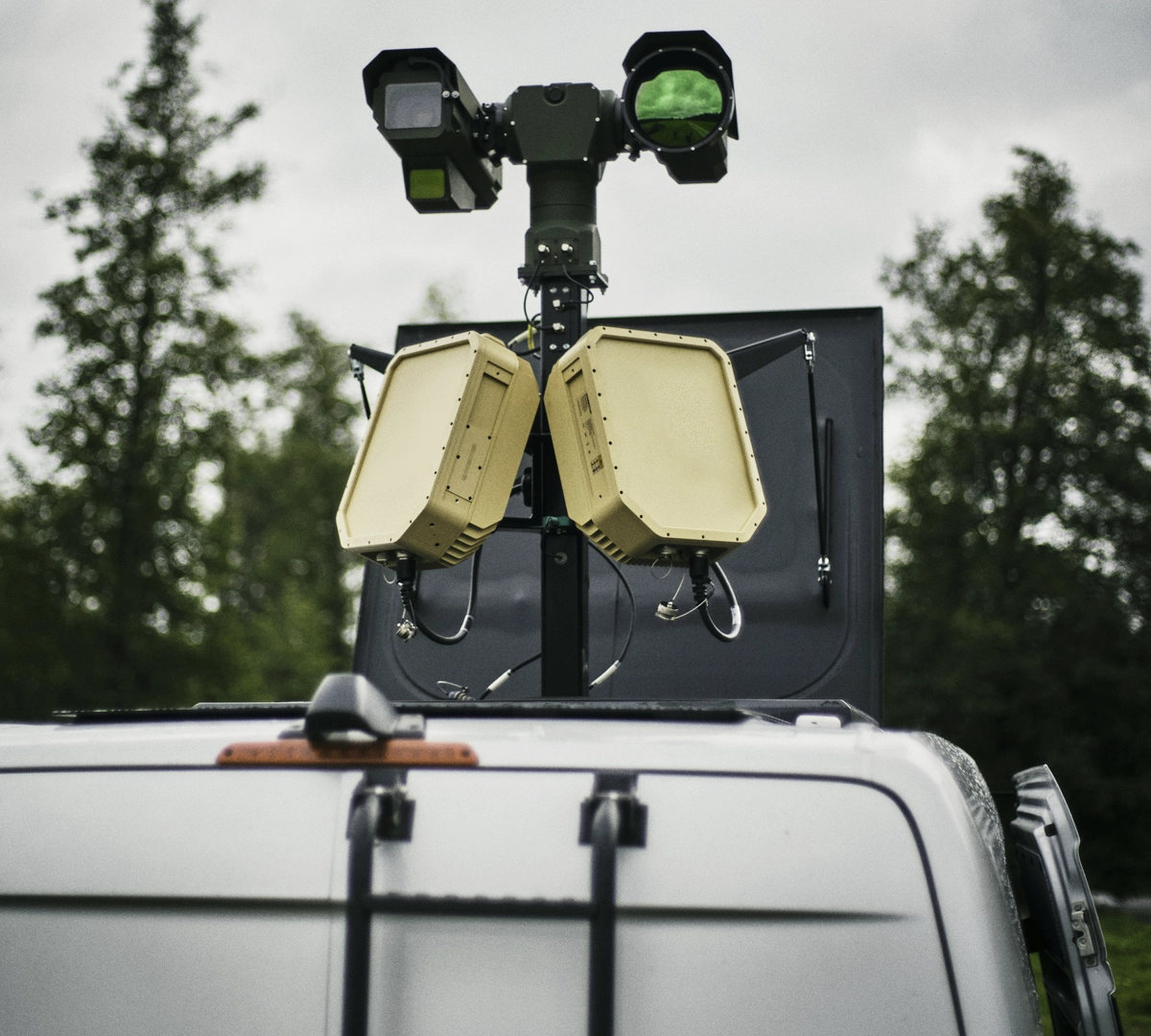

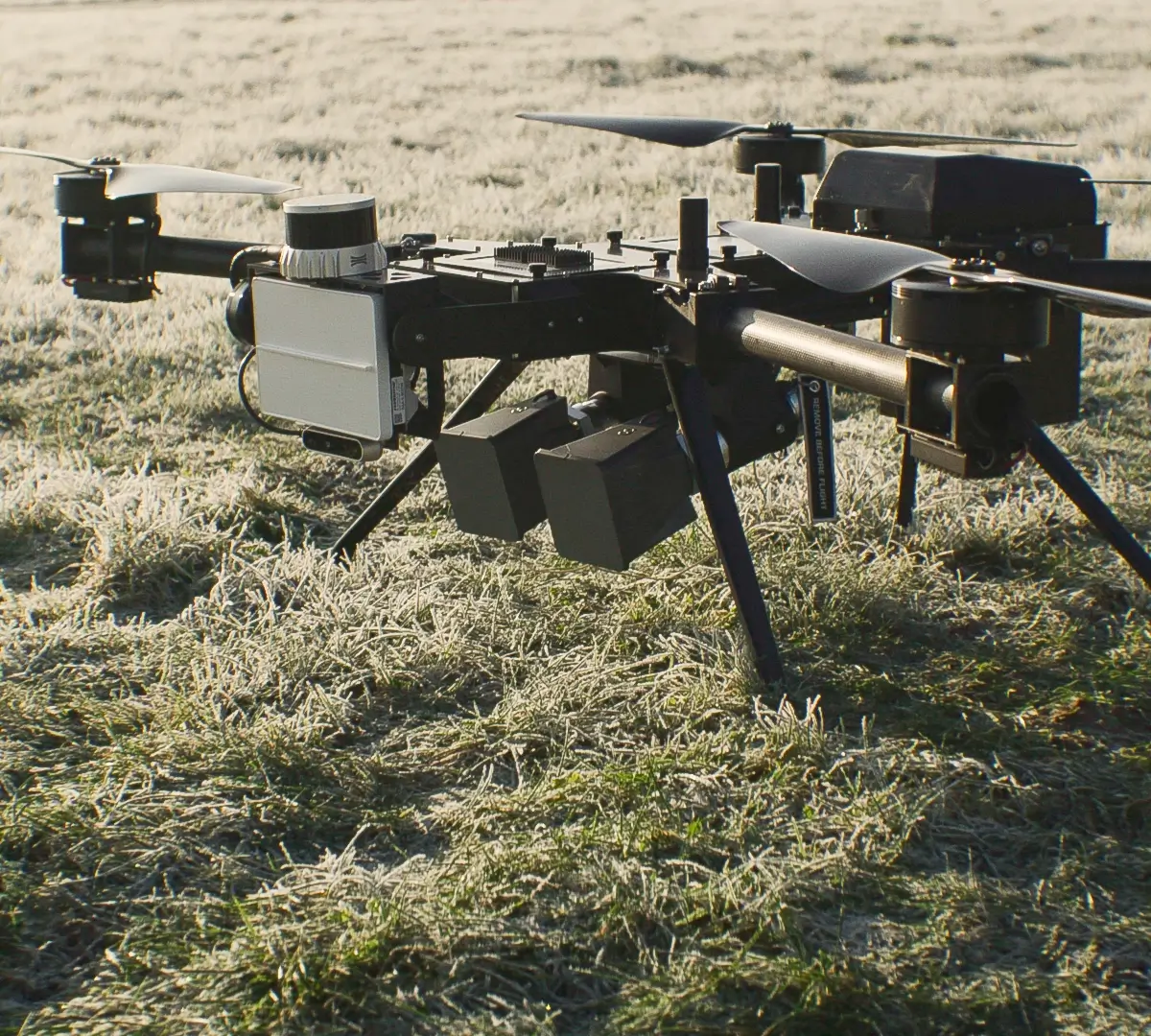

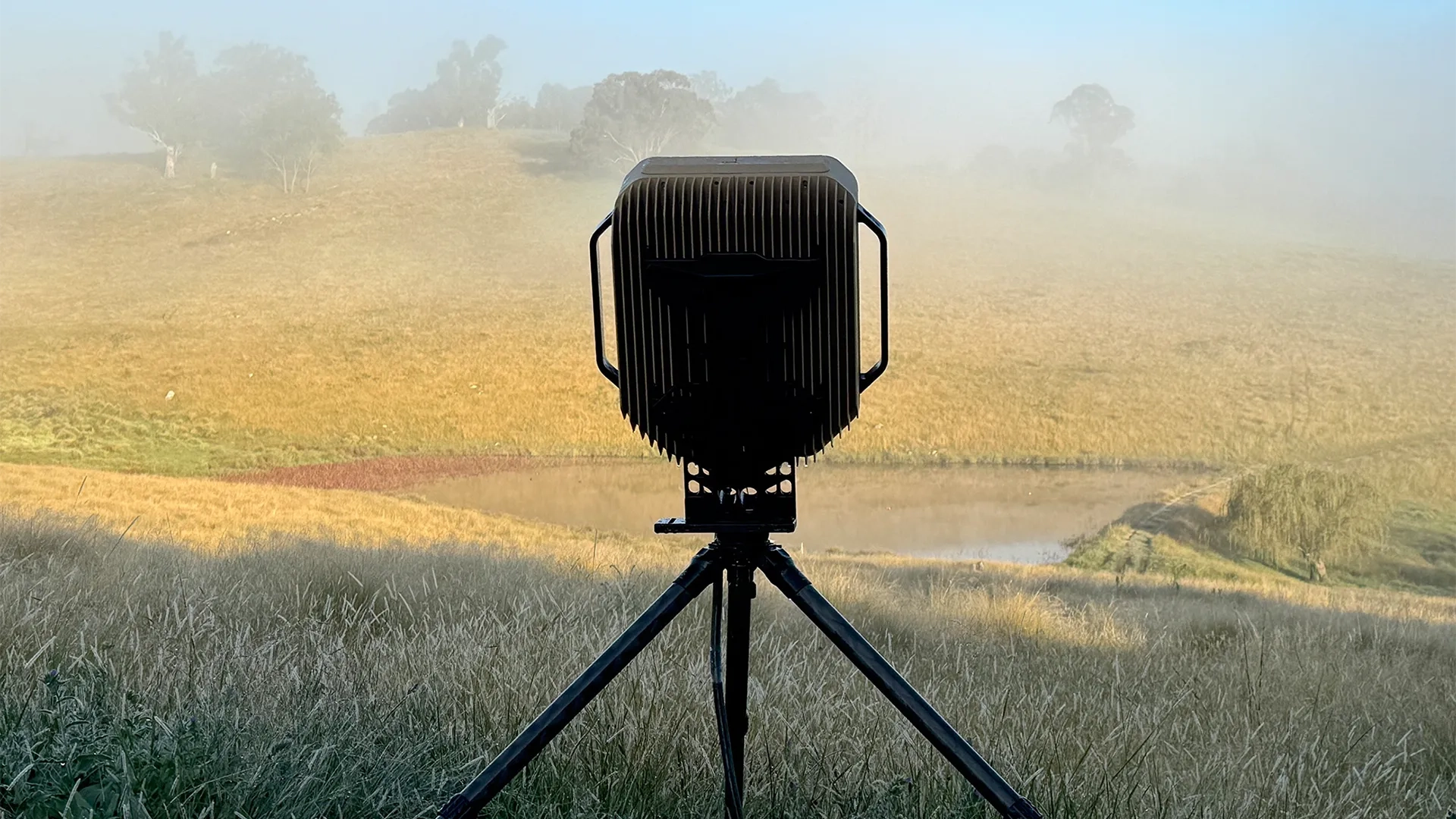

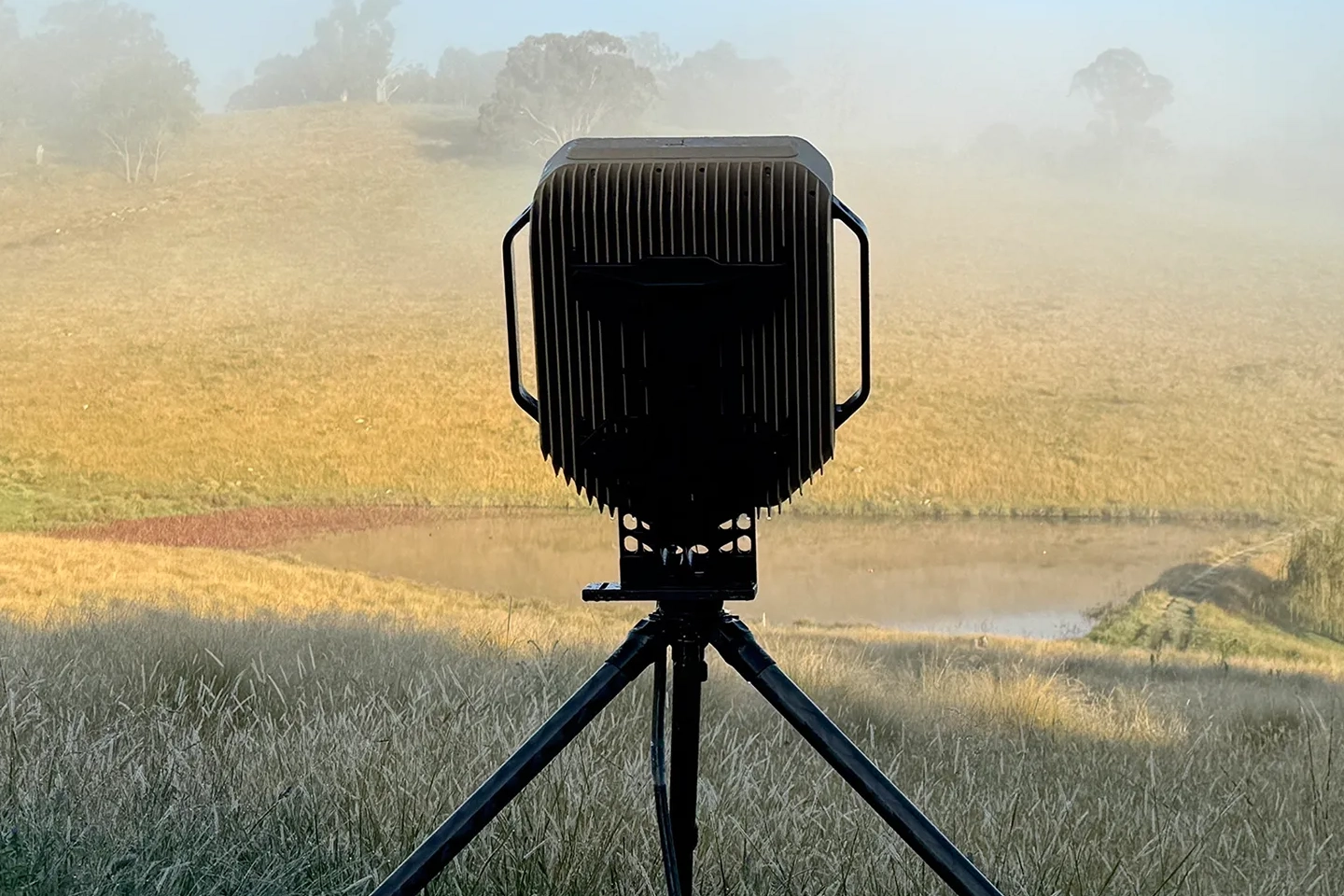

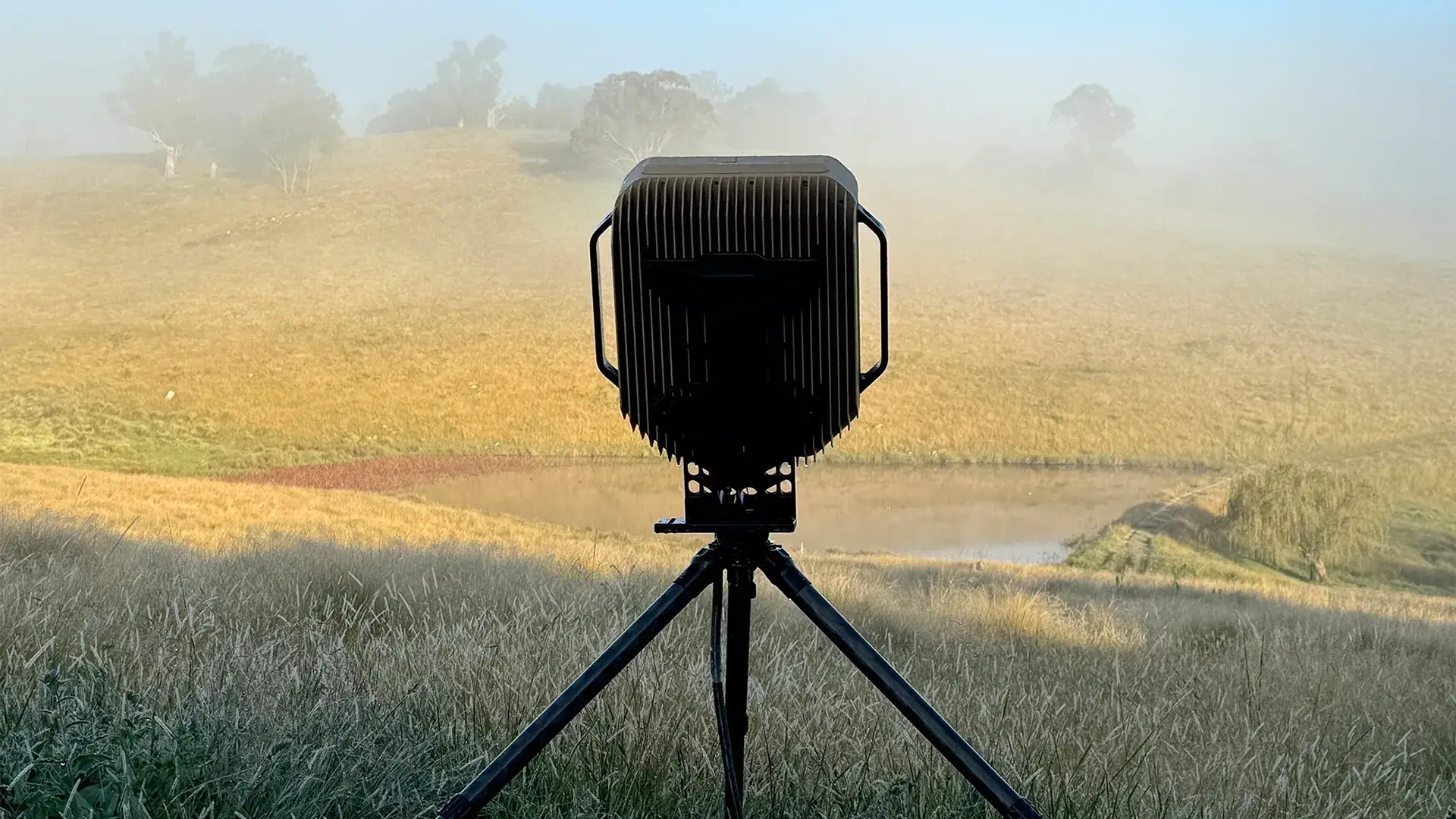

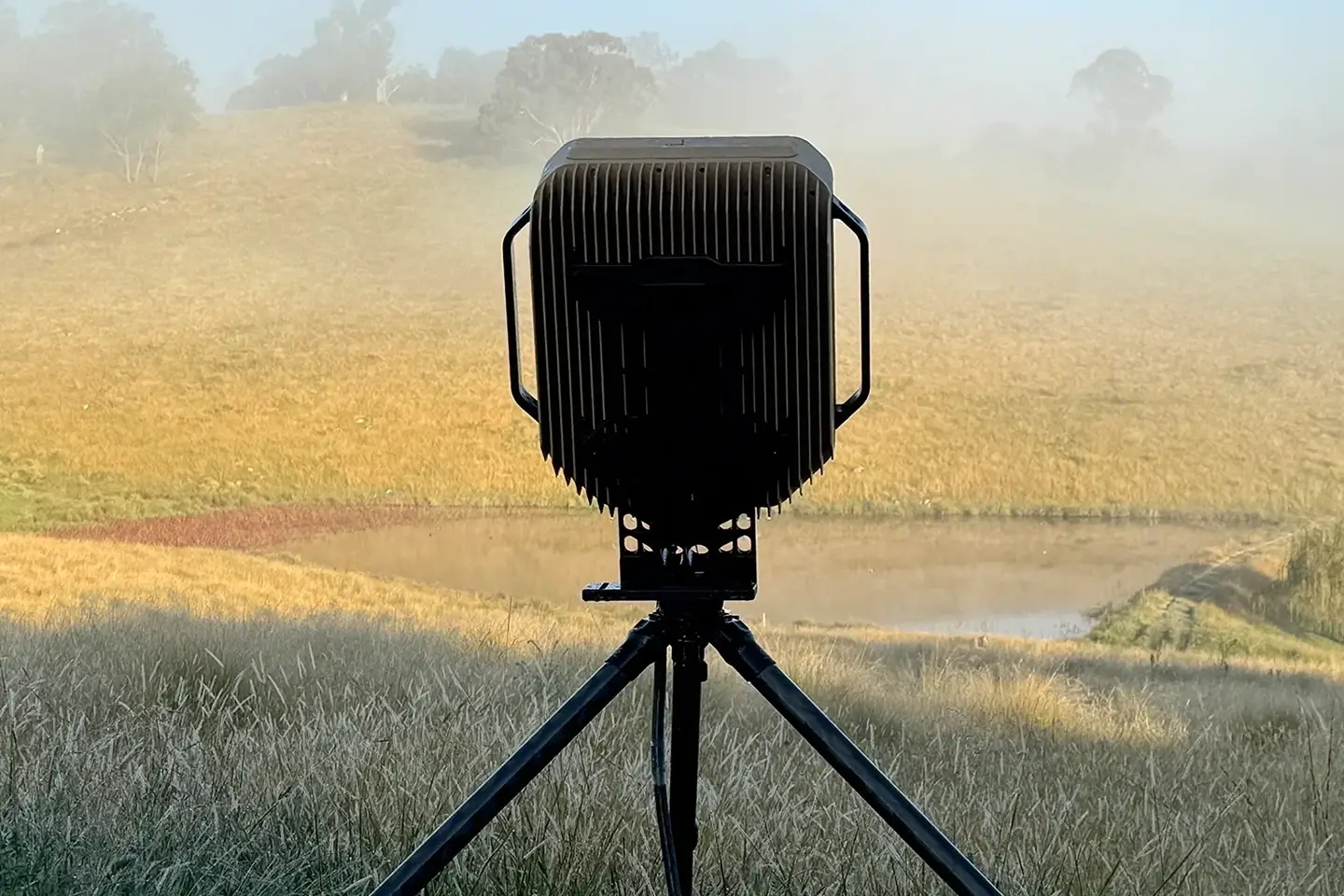

Higher Tx/Rx unit counts in electronically scanned arrays directly translate into narrower beamwidths and improved angular resolution, which are critical for detecting and tracking small, low-signature targets such as drones. With more unit cells contributing to the aperture, such as 576 in a system like EchoShield compared to roughly 40 in a similarly-sized conventional ESA, the radar forms significantly tighter, narrower beams, increasing gain and spatial discrimination while reducing energy spread and interference from adjacent angles. This enables more precise target localization, better separation of closely spaced objects, and improved performance in cluttered, low-altitude environments. In effect, higher element density allows the radar to “focus” energy more sharply in both transmit and receive, enhancing detection sensitivity and track quality in scenarios where precision is paramount.

Advanced Beamforming

Highly directive and narrow beamwidths, agile waveforms, and cognitive scheduling provide a decisive advantage in modern radar performance by enabling highly focused interrogation of the airspace. While conventional ESA systems may operate with broad beamwidths on the order of 20° × 30°, MESA radars can achieve much narrower beams (2° × 6°), dramatically increasing angular resolution and target discrimination. This fine beam control allows the radar to isolate individual objects within dense or congested environments, improving the ability to detect, track, and classify multiple closely spaced targets, such as coordinated drone swarms. Narrow beams also reduce the amount of unwanted energy illuminating the environment, minimizing clutter returns and interference. In contested RF environments, this focused energy provides inherent signature management benefits by lowering the probability of intercept and reducing electromagnetic visibility, while still maintaining high-performance sensing.
