• Ultimate Radar Performance for 3D Security Applications

    Ultimate Radar Performance for 3D Security Applications

    Best range & accuracy in class. Large field of view & true beam-steering. Award-winning. All at commercial price points.
;
  • EchoGuard for 3D Security Gallery Image
  • EchoGuard for 3D Security Gallery Image
  • EchoGuard for 3D Security Gallery Image
  • EchoGuard for 3D Security Gallery Image
  • EchoGuard for 3D Security  Gallery Thumbnail
  • EchoGuard for 3D Security  Gallery Thumbnail
  • EchoGuard for 3D Security  Gallery Thumbnail
  • EchoGuard for 3D Security  Gallery Thumbnail

EchoGuard for 3D Security

Based on MESA technology, EchoGuard brings next-generation 3D sensor performance and software-defined customization to the security market. Ruggedized hardware supports long-range detection, and the onboard Acuity software optimizes radar performance for specific installations and threats. A hierarchy of output data types support everything from track-based camera cueing to deep sensor fusion or machine learning using the radar’s raw range-velocity data-cubes.

Breakthrough radar performance for modern security needs, now available at commercial price points for the first time.

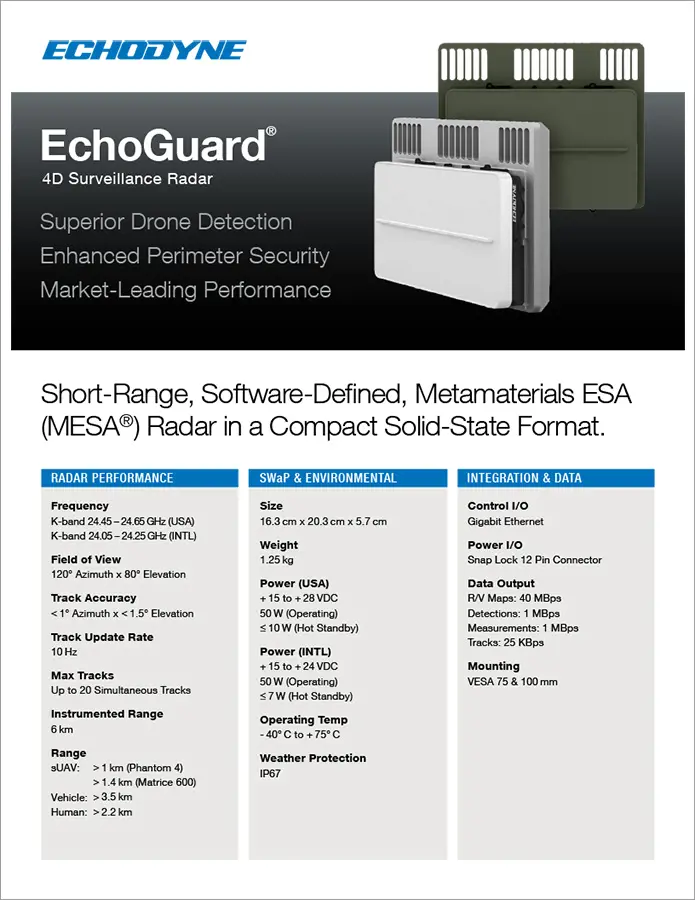

Size 8.0in x 6.4in x 1.57in (20.3cm x 16.3cm x 4cm)
Weight 1.25kg
Power DC +15V to +28V
Operating <50W
Hot standby <15W
Hibernate TBR <100mW
Field of View 120° Azimuth x 80° Elevation

Excellent Phased Array-Like Performance

MESA technology brings the gold standard in radar to commercial markets for the first time.

Long Range Capability for Various Target Types

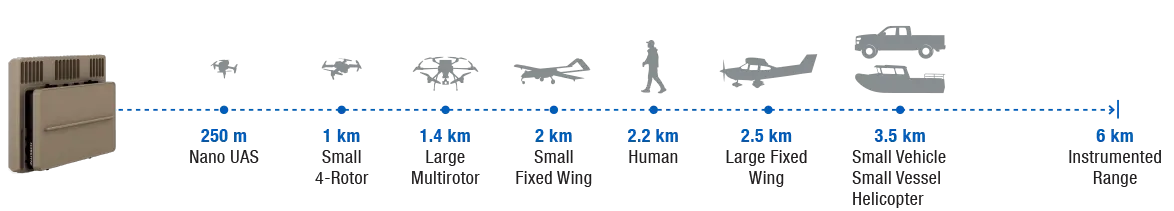

Reliably detect and track aircraft and cars at 3km, people walking at 2km, and sUAS at 1km.

Easy Security Solution Integration

Acuity API integrates seamlessly with your existing security ecosystem to provide unmatched situational awareness.

Learn more about the best sensor for protecting against air and ground threats.
