Airborne UAV Radar

Safety

Reliability

Performance

Advanced Air Mobility (AAM) envisions the lower airspace alive with uncrewed aerial vehicles (UAVs). Over time, new generations of aircraft with novel propulsion systems and vertical takeoff and landing (VTOL) capabilities will move goods and people across communities with greater economic and environmental efficiency.

Two distinct needs will emerge, each based on sensor capabilities that extend onboard or remote pilot capabilities for beyond the visual line of sight (BVLOS) flight. One, small aircraft delivering things from the lifesaving to the trivial. Two, larger aircraft ferrying passengers and delivering cargo. Each will have safety performance requirements that only radar can deliver.

Echodyne airborne radar has key benefits:

Proven and trusted across multiple FAA and NASA UAS programs
Ultra-low SWaP combined with powerful performance
Wide field of view - 2 radars achieve MOPS compliance
Hooks for integration with other sensors (ADS-B)
Low minimum data rate (<35 KB/s)
Deconflicts all airspace movement

Connect with an expert on airborne radar solutions

Contact

UAV Radar Solutions

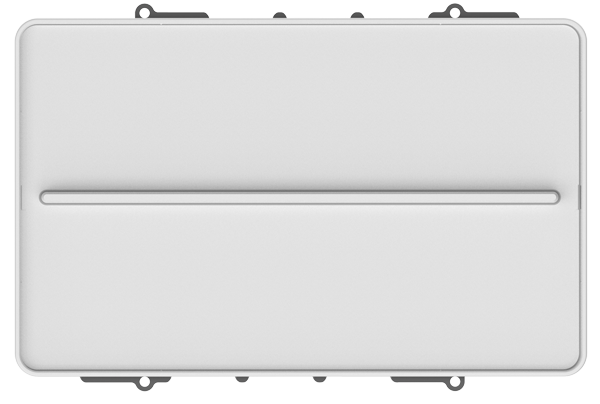

EchoFlight^®

For uncrewed aircraft vehicles (UAVs)

Small UAVs are payload sensitive and employ a concept of operations (ConOps) defined by low level flight. Whether onboard radar or ground sensor systems are best is an ongoing industry debate. The answer is probably a mix of both, though ground radar solutions in densely populated areas is likely more economical.

EchoFlight has been rigorously tested and is now relied on by Federal Avionic Administration (FAA) and National Aeronautics and Space Administration (NASA) UAS test centers, academic institutions, and dozens of private UAS manufacturers. Discover if EchoFlight is right for your UAV and ConOps.

EchoFlight UAV Radar

Next-Generation Large UAV Airborne Radar

Larger aircraft will require the capabilities provided by airborne radar, though the exact specifications remain undefined. Echodyne’s platform approach to radar design allows ground radars to be adapted for airborne requirements that meet future standards.

Larger UAVs will need significantly longer range and greater acuity. These systems are much more likely to be incorporated inside aircraft materials. Echodyne’s MESA radars are uniquely suited for this mission. We are actively working with some of the leading aircraft designers and AAM operators on an airborne radar that aligns with industry standards, global radionavigation service allocation in the Ku-band, and potential regulations. If your requirements include airborne radar for larger UAVs, we would welcome learning your requirements and timing.

Contact Echodyne

Radar News & Events

Why Radar is a Trusted Key Electronic Observer

This article covers essential UAS concepts including role of visual observers, the requirements for BVLOS operations, and the emerging importance of electronic observers and advanced detection and avoidance systems.

The Role of Radar in DFR Programs

DFR (drone as first responder) programs are growing in popularity. Here is an overview of how departments are leveraging drones and how radar can help overcome some of the technical challenges associated with flying beyond visual line of site.

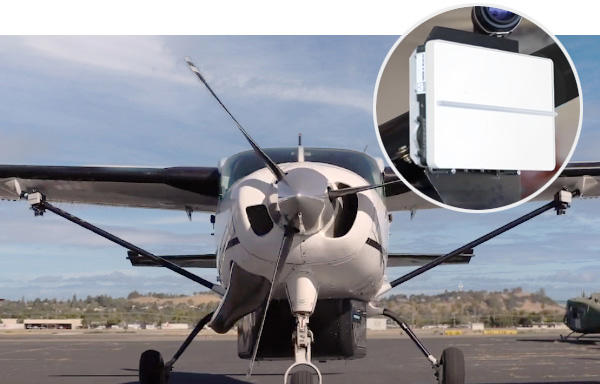

EchoFlight Integrated in FAA-Approved BVLOS Flight Operations

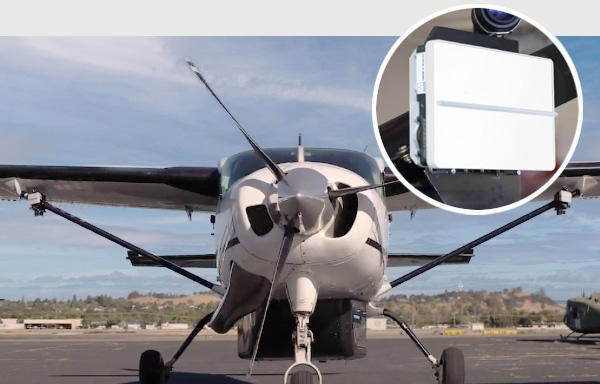

Echodyne’s EchoFlight radar is now integrated into the American Aerospace Technologies, Inc. (AATI) AiRanger aircraft, which obtained a waiver from the Federal Aviation Administration (FAA) last week for commercial Beyond Visual Line-of-Sight (BVLOS) flight operations.

LEARN MORE ABOUT RADAR SOLUTIONS FOR AIRBORNE UAV

LET'S TALK
